7.2. Creating a UniTensor

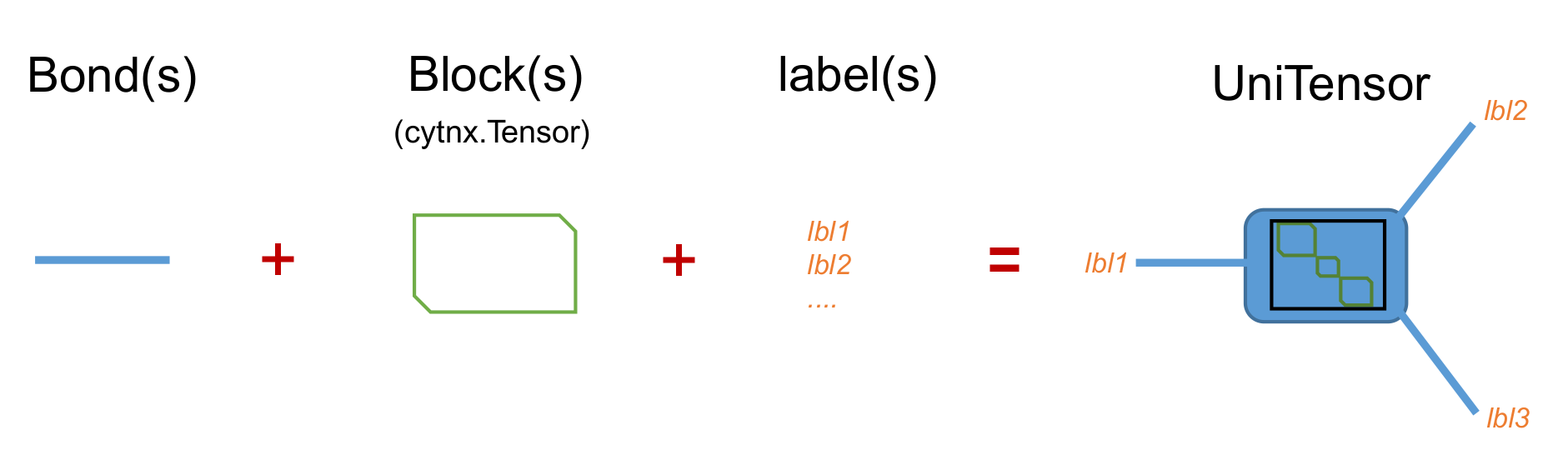

As mentioned in the introduction, a UniTensor consists of Block(s), Bond(s) and label(s). The Block(s) contain the data, while Bond(s) and label(s) are the meta data that describe the properties of the UniTensor.

../../_images/utcomp.png

Generally, there are two types of UniTensor types: un-tagged and tagged, depending on whether the Bonds have a direction. In more advanced applications, a UniTensor may have block diagonal or other more complicated structure when symmetries are involved. Therefore, UniTensors can further be categorized into non-symmetric and symmetric (block form):

non-symmetric

symmetric (block-diagonal)

tagged

O

O

untagged

O

X

In the following, we will explain how to construct a UniTensor.

7.2.1. Constructing from Tensor

Before going into more complicated UniTensor structures, let’s start with the most simple example. For this, we convert a cytnx.Tensor into a UniTensor. This gives us the first type of a UniTensor: an untagged UniTensor.

In the following, we consider a simple rank-3 tensor as an example. The tensor diagram looks like:

../../_images/untag.png

We can convert such a Tensor to a UniTensor:

  • In Python:

1# create a rank-3 tensor with shape [2,3,4]
2T = cytnx.arange(2*3*4).reshape(2,3,4)
3# convert to UniTensor:
4uT = cytnx.UniTensor(T)

Here, the Tensor T is converted to a UniTensor uT simply by wrapping it with constructor cytnx.UniTensor(). Formally, we can think of this as constructing a UniTensor uT with T being its block (data). If we want to create a UniTensor with different dtype, for example, a complex UniTensor, we can do:

  • In Python:

1# initialize a tensor with complex data type
2T = cytnx.zeros([2,3,4], dtype=cytnx.Type.ComplexDouble)
3# convert to UniTensor
4uT = cytnx.UniTensor(T)
5# randomize the elements with a uniform distribution in the range [low, high]
6cytnx.random.uniform_(uT, low = -1., high = 1.)

We can use print_diagram() to visualize a UniTensor in a more straightforward way as a diagram:

  • In Python:

1uT.print_diagram()

Output >>

-----------------------
tensor Name :
tensor Rank : 3
block_form  : False
is_diag     : False
on device   : cytnx device: CPU
          ---------
         /         \
   0 ____| 2     3 |____ 1
         |         |
         |       4 |____ 2
         \         /
          ---------

The information provided by this output is explained in detail in print_diagram(). We see that a UniTensor with the same shape as T was created. The bond labels are set to the default values “0”, “1” and “2”.

7.2.2. From scratch

Next, let’s introduce the complete API for constructing a UniTensor from scratch:

UniTensor(bonds, labels, rowrank, dtype, device, is_diag)
Parameters:

  • bonds (List[cytnx.Bond]) – list of bonds

  • labels (List[string]) – list of labels associate to each bond

  • rowrank (int) – rowrank used when flattened into a matrix

  • dtype (cytnx.Type) – the dtype of the block(s)

  • device (cytnx.Device) – the device where the block(s) are held

  • is_diag (bool) – whether the UniTensor is diagonal

The first argument bonds is a list of Bond objects. These correspond to the shape of a cytnx.Tensor where the elements in shape indicate the dimensions of the bonds. Here, each bond is represent by a cytnx.Bond object. In general, cytnx.Bond contains three things:

  1. The dimension of the bond.

  2. The direction of the bond (it can be BD_REG–undirectional, BD_KET (BD_IN)–inward, BD_BRA (BD_OUT)–outward)

  3. The symmetry and the associate quantum numbers.

For more details, see Bond. Here, for simplicity, we will use only the dimension property of a Bond.

Now let’s construct the rank-3 UniTensor with the same shape as in the above example. We assign the three bonds with labels (“a”, “b”, “c”) and also set name to be “uT2 scratch”.

../../_images/ut2.png

  • In Python:

1uT2 = cytnx.UniTensor([cytnx.Bond(2),cytnx.Bond(3),cytnx.Bond(4)],labels=["a","b","c"],rowrank=1)
2uT2.set_name("uT2 scratch")
3uT2.print_diagram()
4print(uT2)

Output >>

-----------------------
tensor Name : uT2 scratch
tensor Rank : 3
block_form  : False
is_diag     : False
on device   : cytnx device: CPU
          ---------
         /         \
   a ____| 2     3 |____ b
         |         |
         |       4 |____ c
         \         /
          ---------
-------- start of print ---------
Tensor name: uT2 scratch
is_diag    : False
contiguous : True

Total elem: 24
type  : Double (Float64)
cytnx device: CPU
Shape : (2,3,4)
[[[0.00000e+00 0.00000e+00 0.00000e+00 0.00000e+00 ]
  [0.00000e+00 0.00000e+00 0.00000e+00 0.00000e+00 ]
  [0.00000e+00 0.00000e+00 0.00000e+00 0.00000e+00 ]]
 [[0.00000e+00 0.00000e+00 0.00000e+00 0.00000e+00 ]
  [0.00000e+00 0.00000e+00 0.00000e+00 0.00000e+00 ]
  [0.00000e+00 0.00000e+00 0.00000e+00 0.00000e+00 ]]]

Note

The UniTensor will have all the elements in the block initialized with zeros.

7.2.3. Type conversion

It is possible to convert a UniTensor to a different data type. To convert the data type, simply use UniTensor.astype().

For example, consider a UniTensor A with dtype=Type.Int64, which shall be converted to Type.Double:

  • In Python:

1A = cytnx.UniTensor(cytnx.ones([3,4],dtype=cytnx.Type.Int64))
2B = A.astype(cytnx.Type.Double)
3print(A.dtype_str())
4print(B.dtype_str())

Output >>

Int64
Double (Float64)

Note

UniTensor.dtype() returns a type-id, while UniTensor.dtype_str() returns the type name.

7.2.4. Transfer between devices

Moving a UniTensor between different devices is very easy. We can use UniTensor.to() to move the UniTensor to a different device.

For example, let’s create a UniTensor in the memory accessible by the CPU and transfer it to the GPU with gpu-id=0.

  • In Python:

1A = cytnx.UniTensor(cytnx.ones([2,2])) #on CPU
2B = A.to(cytnx.Device.cuda+0)
3print(A) # on CPU
4print(B) # on GPU
5
6A.to_(cytnx.Device.cuda)
7print(A) # on GPU

>> Output:

-------- start of print ---------
Tensor name:
is_diag    : False
contiguous : True

Total elem: 4
type  : Double (Float64)
cytnx device: CPU
Shape : (2,2)
[[1.00000e+00 1.00000e+00 ]
[1.00000e+00 1.00000e+00 ]]




-------- start of print ---------
Tensor name:
is_diag    : False
contiguous : True

Total elem: 4
type  : Double (Float64)
cytnx device: CUDA/GPU-id:0
Shape : (2,2)
[[1.00000e+00 1.00000e+00 ]
[1.00000e+00 1.00000e+00 ]]




-------- start of print ---------
Tensor name:
is_diag    : False
contiguous : True

Total elem: 4
type  : Double (Float64)
cytnx device: CUDA/GPU-id:0
Shape : (2,2)
[[1.00000e+00 1.00000e+00 ]
[1.00000e+00 1.00000e+00 ]]

Note

  1. You can use UniTensor.device() to get the current device-id (cpu = -1), whereas UniTensor.device_str() returns the device name.

  2. UniTensor.to() will return a copy on the target device. If you want to move the current Tensor to another device, use UniTensor.to_() (with underscore).

7.2.5. Tagged UniTensors and UniTensors with Symmetries

The creation of tagged, non-symmetric UniTensors will be explained in Tagged UniTensor. Symmetric UniTensors are discussed in UniTensor with Symmetries.
